SR30V Solvent Recycler – 8 Gallon Class I Div I Solvent Reclaim System

Introducing the IST Surface SR30 8-Gallon Batch Solvent Recycler: Your Ultimate Solution for Efficient and Eco-Friendly Solvent Management!

Key Features: Eliminate a waste stream, save money

1. Smart Solvent Recycling:
   • The SR30 is a small-capacity batch-type solvent recycler designed for industrial companies with solvent based parts washing, paint booths, or general manufacturing.
   • It’s your go-to solution for reclaiming used solvents and hazardous chemicals on-site.
   • PLC allows easy adjustments to time and temperature settings.
2. Fully Automated Distillation Process:
   • The SR30 processes 8 gallons of used solvent at a time. Each cycle takes 4-6 hours, and recovery rate is typically 80% or higher.
   • 2-3 cycles per day can be run depending on operating hours.
   • Lights-out processing is common.
   • Recycled solvent is just as effective as virgin solvent. Distillation only removes contaminants.
3. Safety First:
   • Explosion-proof mechanisms ensure safe operation. Certified to QPS Class 1 Division 1 as standard.
   • 24-month warranty
   • Ergonomically designed to control and eliminate harmful vapors, the SR30 prioritizes user safety.

Benefits: SR30 Solvent Recycler

• Cost Savings:
  • Reduce solvent purchases by up to 95%.
  • Cut waste disposal costs by 90% or more.
  • The vacuum system decreases boiling points, leading to less energy consumption¹.
  • Eliminate EPA Manifest paperwork
  • Eliminate "cradle-to-grave" hazardous waste disposal liability
• Environmental Responsibility:
  • Reclaiming solvents on-site minimizes environmental impact.
  • IST Pure’s distillation process produces clean, distilled solvents ready for reuse.
  • Reduce or eliminate generator status.
• Easy Installation:
  • Ultra-compact design allows installation in authorized locations.
  • Whether in electronics, manufacturing, or maintenance, the SR30 fits seamlessly into your workflow.

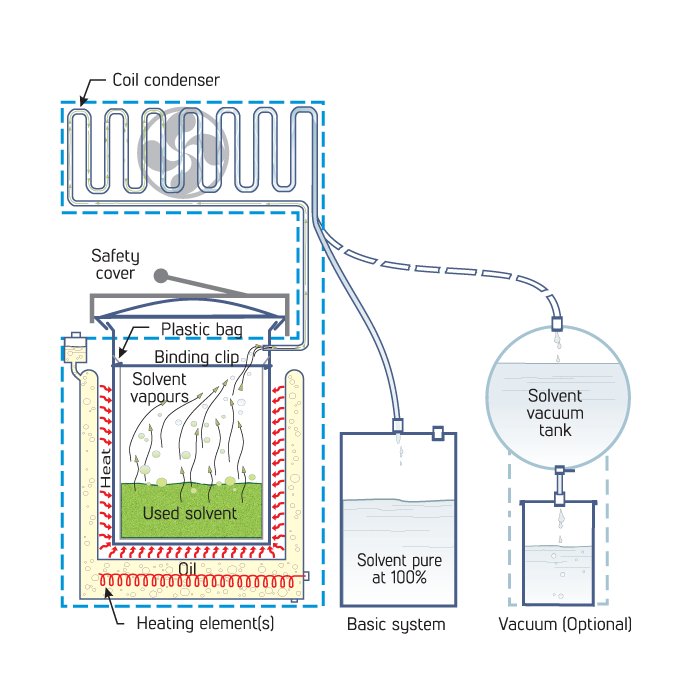

How It Works:

1. Vacuum System:
   • Equipped with a vacuum, the SR30 efficiently recycles cleaning solvents.
   • Solvent mixture is heated, turned into a vapor, cooled down and returned to liquid form, waste is left behind for disposal.
2. Automated Distillation:
   • The SR30 performs manual or fully automated distillation processes.
   • Clean, distilled solvents are ready for subsequent applications.
3. Safety Measures:
   • Explosion-proof features ensure secure operation.
   • ISTpure’s commitment to safety extends to every detail.

Take Control of Your Solvent Management:

Choose the IST Surface SR30 Solvent Recycler for a cleaner, greener, and more cost-effective approach to solvent recycling. Request a quote today and make a positive impact on your business and the environment! 🌿🌎

Learn more about the SR30 on the official IST International Surface Technologies website

Frequently Asked Questions

What is the Kresco SR-30V used for?

The SR-30V is used to recycle contaminated solvents generated from spray gun cleaning, parts washing, and industrial coating operations, allowing facilities to reuse solvent and reduce hazardous waste.

What size operation is the SR-30V best suited for?

With a 7.5-gallon (30-liter) working capacity, the SR-30V is ideal for small to mid-size paint shops, cabinet shops, and manufacturing facilities with batch solvent waste generation.

What solvents can the SR-30V recycle?

The SR-30V can recycle many common industrial solvents such as acetone, MEK, mineral spirits, paint thinners, and similar cleaning solvents, depending on application and configuration.

Is the SR-30V explosion-proof?

Yes. The SR-30V is certified Class I, Division I, Group D, making it suitable for use in hazardous solvent environments commonly found in industrial paint operations.

How is the SR-30V heated?

The system uses an electrically heated thermal oil system, which provides precise temperature control and a self-contained, explosion-proof heating method.

Does the system have an automatic cool-down cycle?

Yes. At the end of each batch, the SR-30V automatically enters a cool-down mode, allowing safer removal of sludge at lower temperatures.

Is installation included with the SR-30V?

Installation, utilities, ventilation, and site preparation are typically the responsibility of the customer unless otherwise specified.

Is pricing listed on this product page?

No. Pricing, lead times, and configuration details are available upon request to ensure proper application and compliance.
