Ultrasonic cleaning gets into geometry that spray washing can’t touch — blind holes, threaded bores, fine mesh, tight assemblies. Magido’s Ultra Series brings that capability to the US market for the first time under the Magido name, in the same 100% AISI 304 stainless steel build quality as the rest of the line.

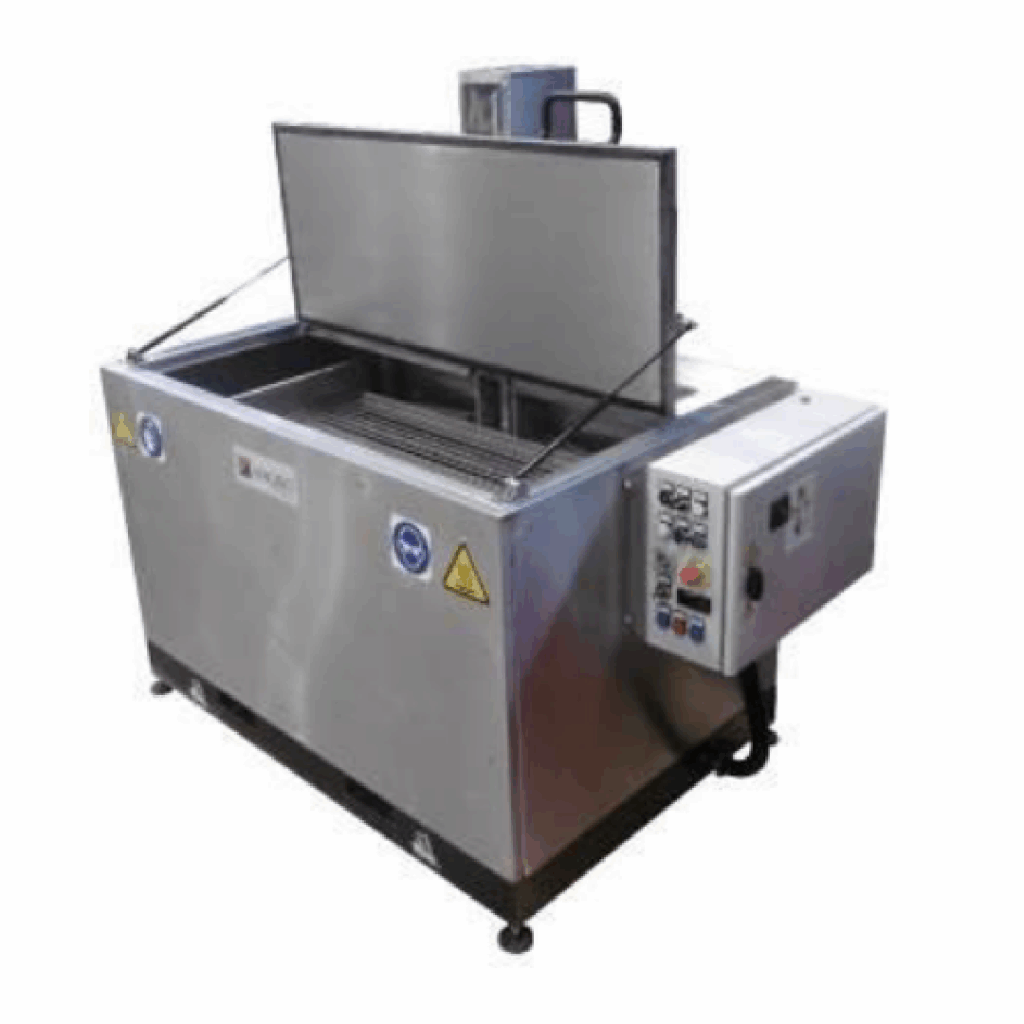

Solvent Recycling Systems is bringing the Magido Ultra Series to the US — a pneumatically-lifted immersion washer line, PLC-controlled, with an integrated oil sparger and weir tank to keep the bath clean between cycles.
How it works
During the cycle, a pneumatically operated lift platform lowers the parts into the tank and agitates them with an up-and-down motion while ultrasonic energy at 25 kHz works soil out of geometry a spray simply can’t reach. An oil sparger and weir tank skim contamination off the bath continuously, and a compressed air blow-off gun finishes parts before they come off the platform.
Standard on every Ultra Series unit:
- Stainless steel construction
- Automatic immersion lift platform
- PLC control
- Compressed air blow-off gun
- Oil sparger & weir tank
- Low water shutoff
- Thermostat-controlled solution heater
- Adjustable leveling feet
- Thermal insulation
The five sizes
| Spec | U600 | U700 | U900 | U1100 | U1300 |
|---|---|---|---|---|---|
| Platform | 23.6"×11.8" | 27.6"×15.7" | 35.4"×15.7" | 43.3"×19.7" | 51.2"×23.6" |
| Load height | 13" | 13" | 15.7" | 15.7" | 15.7" |
| Weight capacity | 180 lbs | 180 lbs | 550 lbs | 550 lbs | 770 lbs |
| Tank capacity | 53 gal | 70 gal | 100 gal | 140 gal | 180 gal |
| Tank heater | 4 kW | 6 kW | 8 kW | 10 kW | 12 kW |
| Ultrasonic power | 1,500 W | 2,000 W | 3,000 W | 4,000 W | 5,000 W |
| Ultrasonic frequency | 25 kHz | 25 kHz | 25 kHz | 25 kHz | 25 kHz |
| Amperage | 18A | 27A | 36A | 46A | 56A |
| Operating temp | 170°F | 170°F | 170°F | 170°F | 170°F |
| Voltage / phase | 230V/3PH | 230V/3PH | 230V/3PH | 230V/3PH | 230V/3PH |
| Overall dimensions | 57"×35"×59" | 60"×38"×59" | 68"×38"×67" | 76"×42"×67" | 84"×46"×70" |
Who this is for
- Precision component cleaners — anywhere blind holes, threads, or fine assemblies need to come out contaminant-free, not just visibly clean.
- Shops already running ultrasonic and outgrowing their current unit — five sizes means there’s a real upgrade path instead of a single fixed capacity.
- Manufacturers evaluating ultrasonic for the first time — this is a genuinely new capability for us to offer, backed by the same stainless build and US support as the rest of the Magido line.
Reserve a demo
The Ultra Series is new to the US market. We’re scheduling demos now, ahead of the wider launch push — tell us what you’re cleaning and we’ll show you what it does with your actual parts.
New to ultrasonic, or outgrowing your current unit? Tell us what you’re cleaning — we’ll spec the right Ultra Series size and get you a demo.
