Description

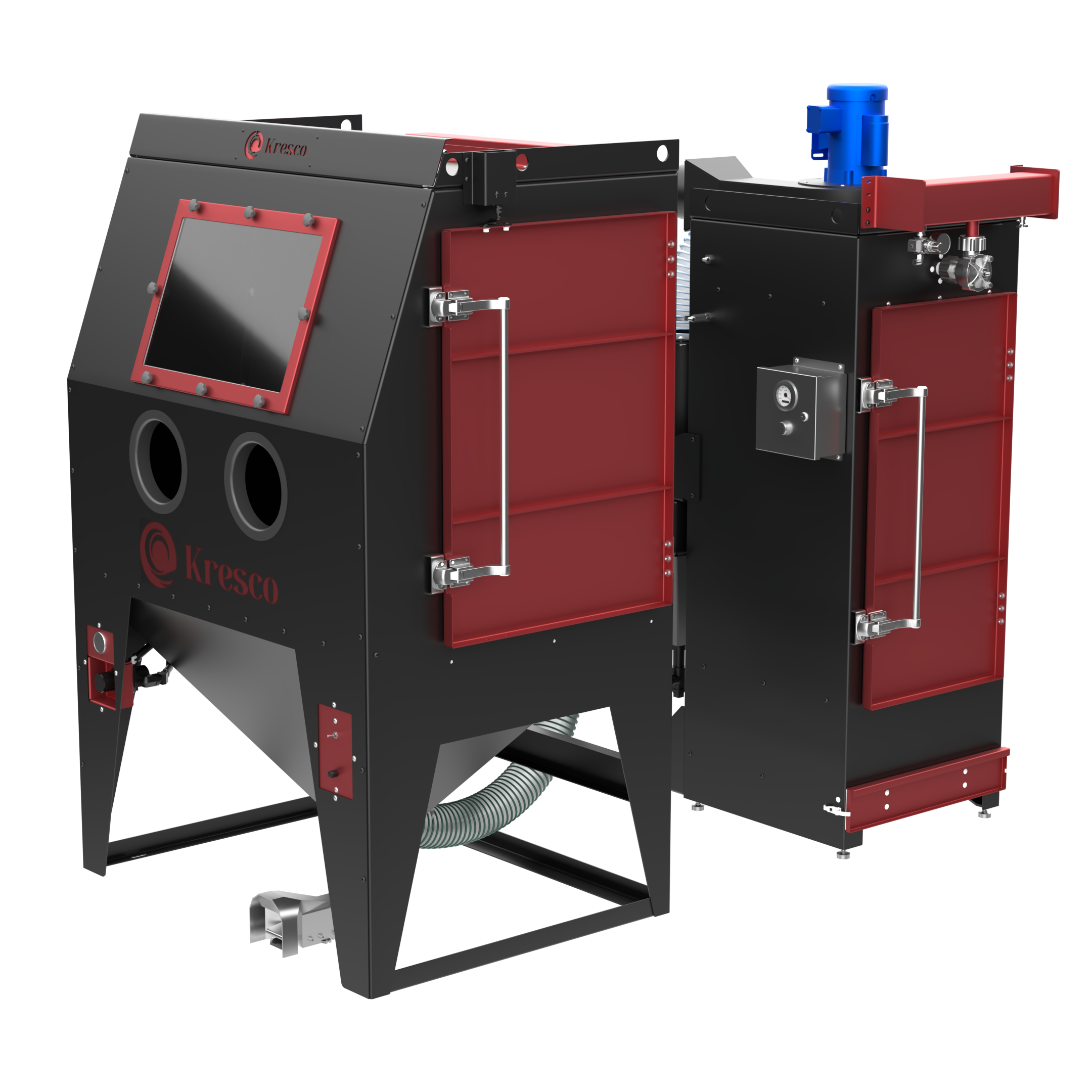

The Kresco CleanBlast™ Series is a compact, budget-friendly line of suction sandblast cabinets for light-industrial shops, automotive and powersports aftermarket, restoration and maintenance departments. You get the same 12-gauge welded steel construction, cyclonic media separator and self-cleaning cartridge dust collector as Kresco’s industrial PowerBlast line, in four pre-engineered sizes up to 48″ × 48″ and with the separator mounted on the collector for a smaller footprint. Built in Quebec, Canada; supplied, installed and supported by Solvent Recycling Systems.
Request a CleanBlast quote or call (847) 833-7010.
What’s Different About the CleanBlast
- Suction delivery only — an air jet in the gun draws media from a 1.0 cu ft storage hopper. Lower air demand (a 1/4″ nozzle with a 1/8″ air jet needs about 21 CFM at 80 PSI) so it runs on a modest shop compressor.
- Cyclone on the collector — the RSB10 cyclonic separator is mounted on the CDC400 dust collector, so the whole system takes less floor space than a stand-alone cyclone.
- Four sizes instead of eleven, 28″ × 36″ to 48″ × 48″ interior.
- Rubber/vinyl gloves standard (leather optional) and the air blow gun is an option rather than standard.
Everything else that matters is there: foot-operated process control, large Lexan view window, LED lighting, a wide-opening product door, pulse-cleaned cartridge filtration, a large debris trap drawer and an air inlet manifold with pressure regulator and media regulation valve.
Standard Specifications
| Item | Standard | Optional |
|---|---|---|
| Delivery system | Suction | — |
| Media capacity | 1.0 cu ft storage hopper | — |
| Metal thickness | 12 gauge | On request |
| Floor capacity | 500 lb | 1,000 to 5,000 lb |
| Gloves | Rubber / vinyl sleeve | Rubber / leather sleeve |
| Nozzle | Boron carbide, 1/4″ ID | 5/16″, 3/8″, 7/16″ |
| Blast gun control | Foot pedal | No-contact pedal |
| Window | Lexan | — |
| Lighting | 24″ LED fixture | — |
| Air blow gun | No | Yes |
| Electrical (dust collector) | 120 V, 9 A, 1.1 kW | — |
Four Pre-Engineered Sizes
All CleanBlast cabinets are 75″ tall overall with a 35″ interior height.
| Model | Interior (L × W × H) | Door opening (W × H) | Overall footprint (L × W) |
|---|---|---|---|
| CB2836 | 28″ × 36″ × 35″ | 16″ × 34-5/8″ | 28½” × 40¼” |
| CB3636 | 36″ × 36″ × 35″ | 24″ × 34-5/8″ | 36½” × 40¼” |
| CB3648 | 36″ × 48″ × 35″ | 24″ × 34-5/8″ | 36½” × 52¼” |
| CB4848 | 48″ × 48″ × 35″ | 36″ × 34-5/8″ | 48½” × 52¼” |
Media Recovery and Dust Collection
Spent media and dust leave the cabinet together. The RSB10 cyclonic separator spins the good abrasive out and drops it back into the hopper; dust and fines carry on to the CDC400 cartridge collector, where a pulse-cleaning system keeps the filter clear and a bottom drawer collects the dust. An adjustable air inlet on the cyclone lets you tune it for different media bulk densities.
| CDC400-RSB10 | Specification |
|---|---|
| Dust collector motor | 3/4 HP |
| Fan | 400 CFM |
| Filter cartridges | 1 (318 sq ft) |
| Collector overall (L × W × H) | 48½” × 27½” × 80½” |
| Cyclone body diameter | 10″ |
| Cyclone inlet / outlet ID | 4″ / 4″ |
| Storage hopper | 1.0 cu ft |
Options
- Second product loading door
- Work turntable, 500 lb capacity
- Grounding kit
- Rubber lining on cabinet walls
- Door safety switch (stops blasting when a door opens) and door safety lock (holds doors shut while dust settles)
- No-contact foot pedal; leather gloves; air blow gun
Air Requirement by Nozzle
| Air jet / nozzle | 40 PSI | 60 PSI | 80 PSI |
|---|---|---|---|
| 1/8″ jet, 1/4″ nozzle | 12 CFM | 17 CFM | 21 CFM |
| 5/32″ jet, 5/16″ nozzle | 19 CFM | 27 CFM | 34 CFM |
| 3/16″ jet, 3/8″ nozzle | 27 CFM | 38 CFM | 48 CFM |
| 7/32″ jet, 7/16″ nozzle | 38 CFM | 52 CFM | 65 CFM |
Kresco suction system air consumption table. Glass bead, aluminum oxide, plastic media and crushed glass all run well in a CleanBlast; see the blast media chart.
Guns, Gloves and Wear Parts
The CleanBlast uses the Kresco G5 suction gun (ceramic, tungsten carbide or boron carbide nozzles, 1/4″ to 7/16″) and 30″ vinyl-sleeve cabinet gloves (GLO-VIN-8 or GLO-VIN-10 depending on port size; 40-mil natural rubber gauntlet, fleece lined). We stock nozzles, air jets, gloves, window protectors and CDC400 cartridges; contact our parts desk.
CleanBlast vs. PowerBlast
Choose CleanBlast for parts up to about 3 ft × 3 ft, lighter media, intermittent use and a limited compressor. Step up to the PowerBlast Series for all-day production, pressure delivery, steel abrasives, parts to 6 ft × 6 ft, heavier floor loads and the larger CDC600–CDC1800 collectors. For a hobby or very light-duty cabinet see the ECO420. Parts that won’t fit any cabinet belong in a blast room.
Pricing and Lead Time
CleanBlast cabinets are built to order in four sizes. Send the largest part you need to blast, the media you’ll run and your compressor’s CFM and we’ll quote the right size with lead time. Request a quote or call (847) 833-7010. After blasting, protect bare steel with a Cortec VpCI rust preventative.
