Description
Stainless steel, water-based industrial cleaning — 70-gallon tank with automatic lift platform

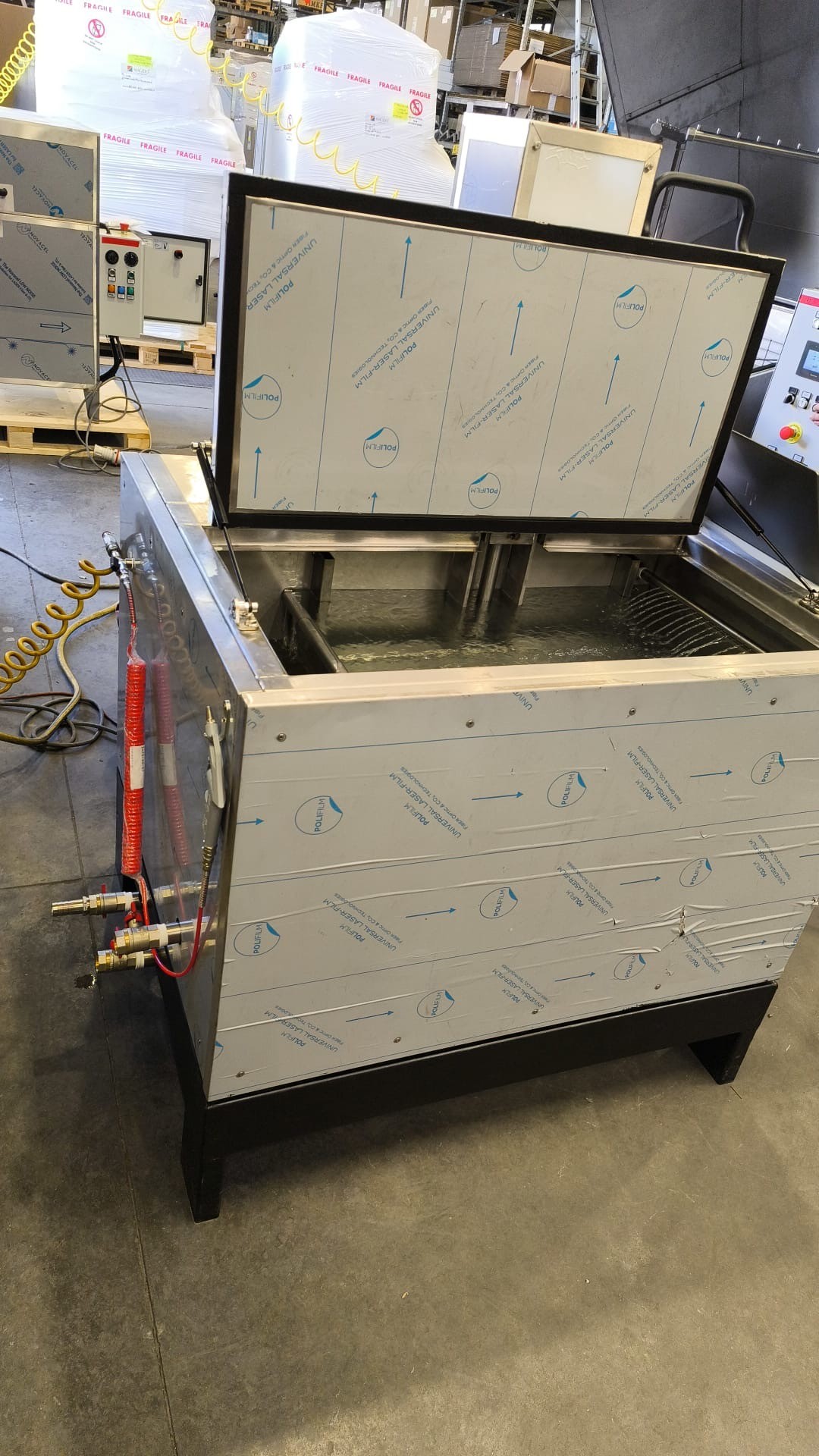

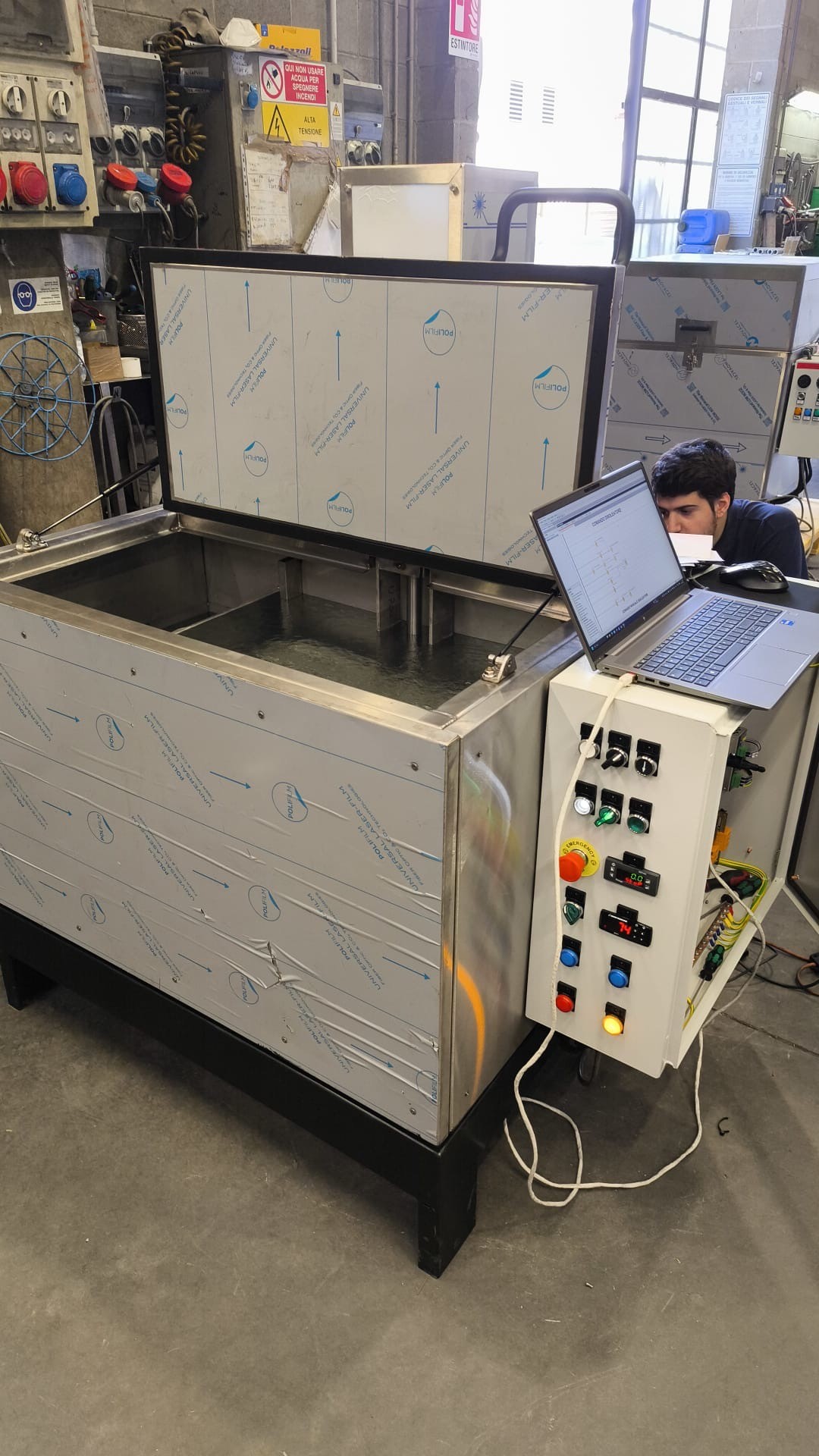

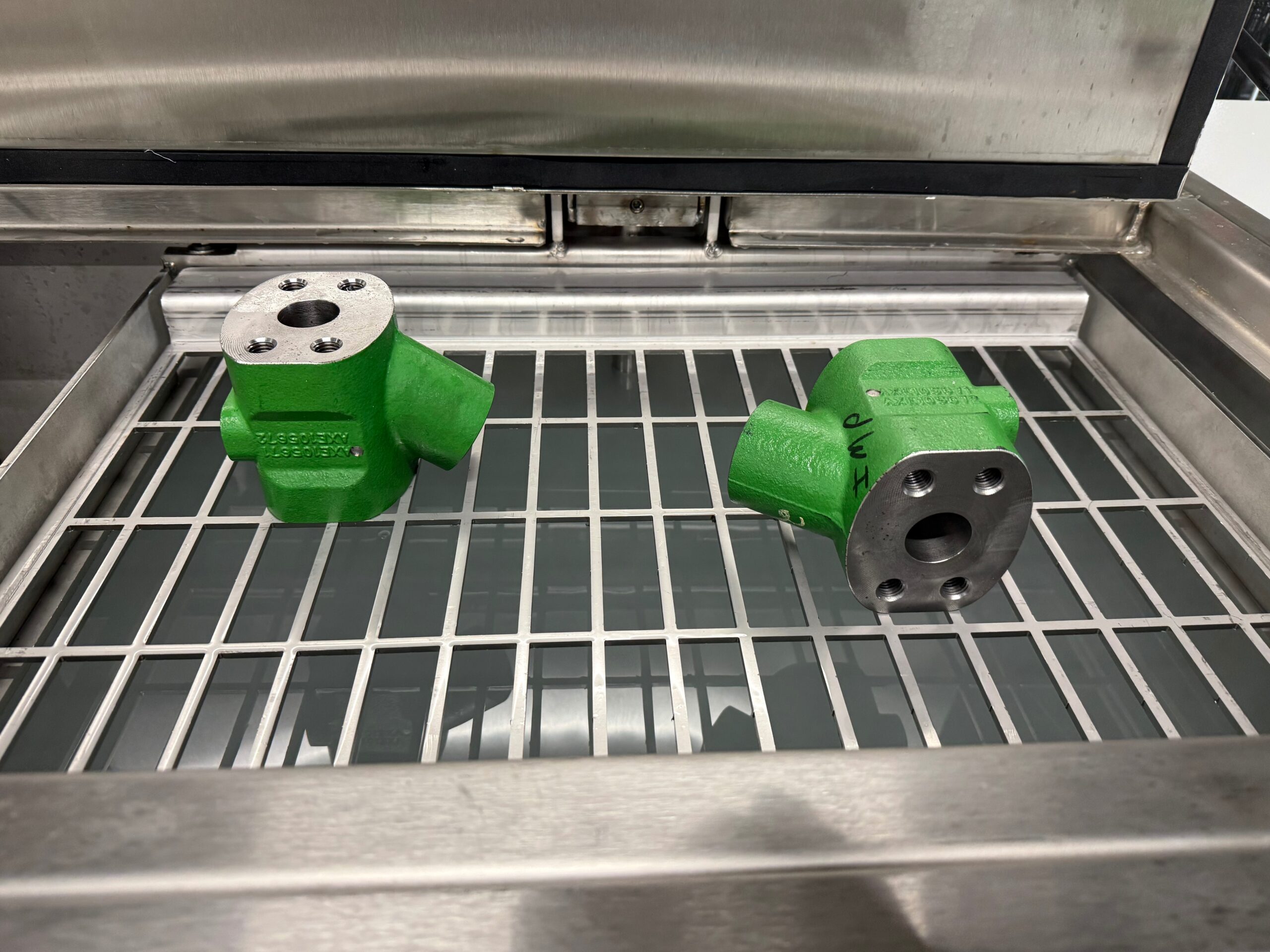

The Magido U-700 is a heavy-duty ultrasonic immersion parts washer built entirely from stainless steel for years of demanding service. During the wash cycle, a pneumatically operated lift platform lowers your workload into the tank and agitates it with an up-and-down motion while 2,000 watts of ultrasonic energy drive contaminants out of blind holes, threads, and other hard-to-reach areas. An integrated oil sparger and weir tank continuously skim tramp oils off the surface, keeping your cleaning solution working longer.
Part of Magido’s ULTRA Series, the U-700 uses environmentally friendly, water-based detergents — no solvents required — making it an excellent fit for shops looking to move away from hazardous solvent cleaning while improving cleanliness and consistency.
Key Features
- Full stainless steel construction
- Automatic immersion lift platform
- 2,000 W ultrasonic power @ 25 kHz
- Oil sparger & weir tank (tramp-oil removal)
- PLC control
- Thermostat-controlled 6 kW solution heater
- Compressed-air blow-off gun
- Thermally insulated tank
- Low-water shutoff protection
- Adjustable leveling feet
Specifications
| Wash Platform Size | 27.6″ × 15.7″ |
|---|---|
| Maximum Load Height | 13″ |
| Weight Capacity | 180 lbs |
| Tank Capacity | 70 gallons |
| Operating Temperature | Up to 170°F |
| Tank Heater | 6 kW |
| Ultrasonic Power | 2,000 W |
| Ultrasonic Frequency | 25 kHz |
| Electrical | 230 V, 3-Phase, 60 Hz — 27 A |
| Overall Dimensions (L×W×H) | 60″ × 38″ × 59″ |
| Construction | Stainless steel, thermally insulated |
Ideal Applications
Request a Quote
Pricing is configured to your application. Tell us what you’re cleaning and we’ll spec the right unit.
Solvent Recycling Systems LLC is an authorized Magido distributor. Also available: U-600, U-900, U-1100, and U-1300 for smaller or larger workloads. Specifications subject to change by the manufacturer without notice.
