Standard Series Pipe Washer

Call for Price


These parts washers are designed for the spray washing of profiles, tubes and cylinders, using aqueous detergents at a temperature of 70°C maximum. These machines are mainly characterized by a pneumatically opening door, controlled by the operator. They also have an external workpiece-holder for the manual loading and unloading. All machines are made of AISI 304 stainless steel and they are models for one or two wash treatments. The parts’ washing occurs in 2 phases: internal washing, through fixed positioned nozzles positioned; external washing, through tilting nozzles.

Pipe W


  • Made of AISI 304 stainless steel
  • Fixed pallet
  • Manual workpiece-carrier trolley
  • Fixed and tilting nozzles
  • Vapours extraction
  • Thermic insulation
  • Electric heating
  • Water level’s control and restoring
  • Nozzles movement’s controlled by the inverter
  • PLC Siemens
  • Touch panel with remote control
  • Hour counter


  • Electric hot air drying system
  • Automatic trolley loader

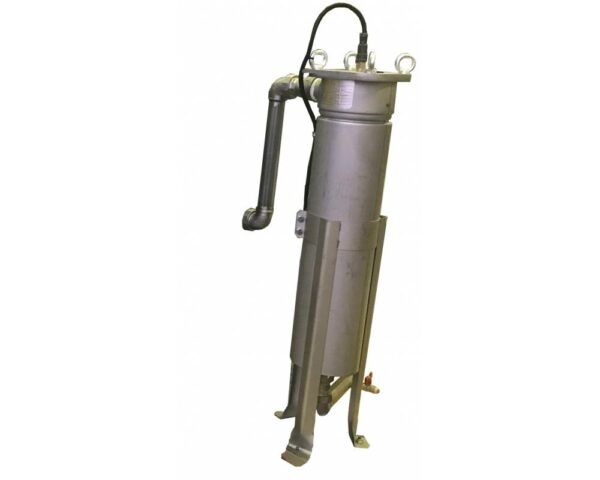

  • Column filter
  • Disk oil skimmer 300
  • Oil separator through specific weight OS170
  • Emptying tank pump
  • Daily/weekly programmer
WIDTH CAPACITY 3000 mm 3000 mm
DEPTH CAPACITY 1000 mm 1000 mm
HEIGHT CAPACITY 800 mm 800 mm
WEIGHT CAPACITY 700 kg 700 kg
DIMENSION (L*P*H) 2450x7200xh3350 mm 2700x2650xh2200 mm
