Description

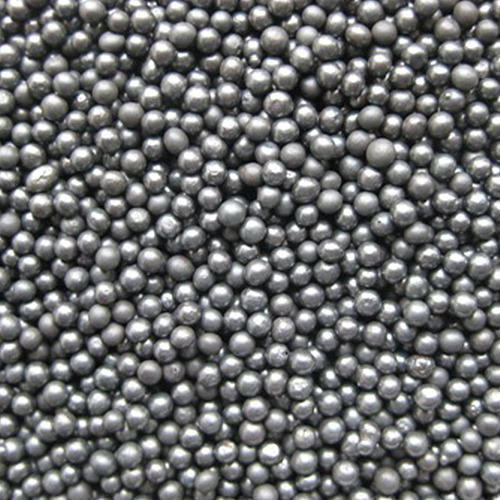

Steel shot is the solid round abrasive that hammers rather than cuts: its weight gives a heavy peening impact that cleans forgings and heat-treat scale while leaving a smooth, polished surface, and in controlled peening it imparts the compressive stress that extends the fatigue life of crankshafts, turbine blades, gears and heavy-duty springs. It is standard in blast rooms and airless wheel blasters for cleaning, polishing and finishing, and is frequently blended with steel grit. Supplied by Solvent Recycling Systems in 55 lb bags, 40-bag skids and 1,700 lb drums.
Quick Specifications
| Working speed | Medium |
| Recyclability | Very high |
| Probability of metal removal | Very low |
| Hardness | Mohs 6–7.5 (20–66 HRC) |
| Bulk density | 230 lb/cu ft |
| Mesh range | 8–200 |
| Typical blast pressure | 30–90 psi |
| Shape | Spherical |
| Packaging | 55 lb bag; skid of 40 bags; 1,700 lb drum |
Advantages
- Long lasting; recycled many times with low dust
- Aggressive hammering action on heavy scale with a smooth, polished result
- Shot peening improves the mechanical properties of critical parts
Grades and Kresco Codes
| Code | Nominal size | Typical use |
|---|---|---|
| ASS-S110-50 | 0.18 mm | Small ferrous and non-ferrous castings; light scale on heat-treated parts |
| ASS-S170-50 | 0.35 mm | Machined parts; mill scale, rust and deposits |
| ASS-S230-50 | 0.50 mm | Machined parts; mill scale, rust and deposits |
| ASS-S280-50 | 0.60 mm | Grey and malleable iron, light steel castings, medium forgings, heat-treated parts, heavy mill scale |
| ASS-S330-50 | 0.71 mm | As S280 |
| ASS-S390-50 | 0.85 mm | Steel, heavy malleable and grey iron castings; scale on large billets and slabs |
| ASS-S460-50 | 1.00 mm | As S390 |
Applications
Surface polishing and finishing; shot peening for fatigue life in aircraft and vehicle components; shot-blast cleaning of forgings and castings. Runs in blast rooms with mechanical recovery, Kresco shot peening systems and wheel blasters such as the rubber belt tumble blaster. Protect peened or cleaned steel with a Cortec VpCI rust preventative until it is coated.
Ordering
Steel shot ships by the bag, skid or drum from Solvent Recycling Systems with the rest of your blasting consumables. Tell us the grade, quantity and your blast equipment and we’ll quote delivered pricing. Request a media quote or call (847) 833-7010. Not sure which abrasive? Start with our blast media selection chart and the nozzle air consumption chart.
