Description
Anilox Cleaning for Wide-Web and Corrugated
Corrugated and wide-web presses can’t send a 100″ roll out for cleaning every time density drifts. The AC40–AC160 Anilox Roll Cleaning Tubs bring the same closed-loop dry blast process as our AC cabinets to full-width rolls — sized from 40″ up to 160″ face widths.
How It Works

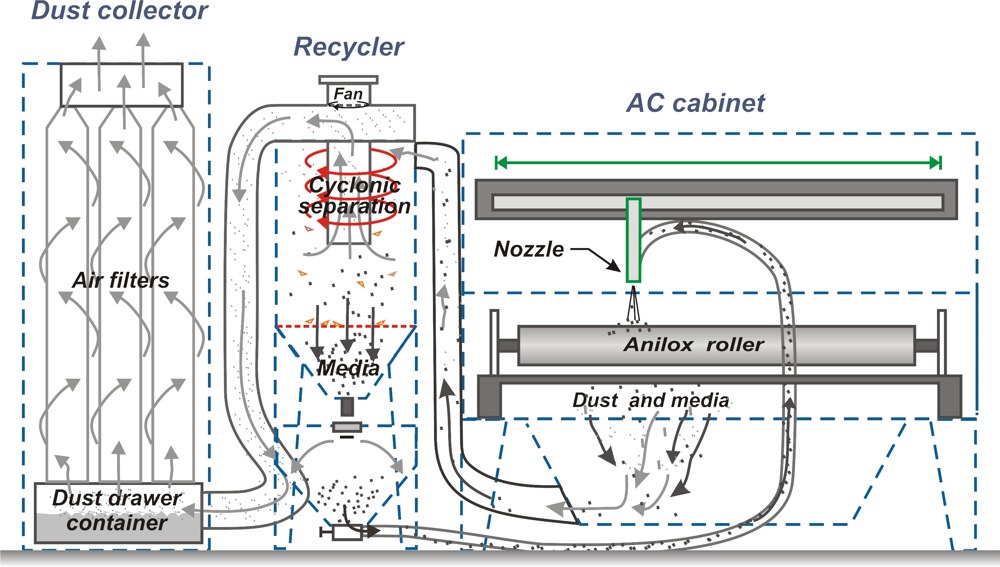

The roll turns on powered supports while a nozzle traverses the full engraved face on a rail. Spent media and ink dust are pulled through a cyclonic recycler that returns clean media to the gun and sends fines to a cartridge dust collector — no rinse water, no chemical disposal, uniform cell recovery across the full face width.
Built for the Corrugated & Wide-Web Pressroom
- Face widths 40″ to 160″ — sized to your press, not the other way around
- In-plant cleaning — no freight, no waiting on outside roll services
- Closed-loop media recovery — low operating cost per clean
- No chemicals or wastewater — dry process, dust captured in cartridge collector
Narrow-web shop? The AC24/AC36 cabinets handle rolls up to 36″.
Request a quote with your roll dimensions and we’ll size the right tub and media.
